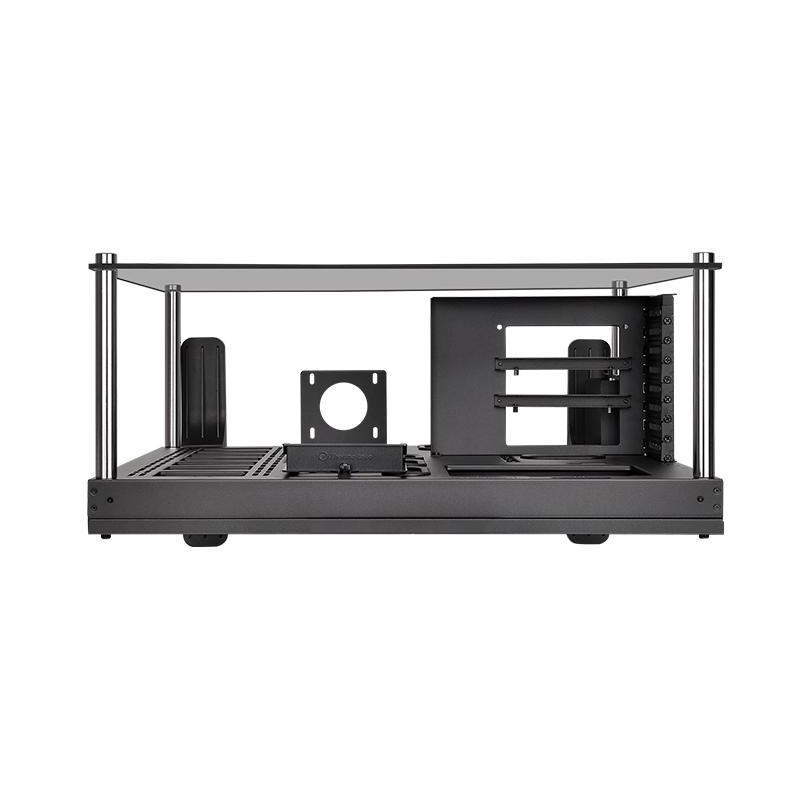

Assembling Chassis: 627 x 333 x 1350 mm (24.7 x 13.1 x 53.1 inch), Extended Chassis: 608 x 333 x 320 mm (23.9 x 13.1 x 12.6 inch), Main Chassis: 608 x 333 x 570 mm (23.9 x 13.1 x 22.4 inch)
重量:
25.5 kg / 56.21 lb
材質:
SGCC
儲存裝置:
Accessible:1 x 3.5″ or 2.5″ (HDD tay) , 2 x 3.5″ or 3 x 2.5″ (HDD Bracket), Hidden:3 x 3.5″ or 2.5″ (Behind the M/B tray)
PCI插槽:
8
適用主機板:
12″ x 13″ (E-ATX), 12″ x 9.6″ (ATX), 6.7″ x 6.7″ (Mini ITX), 9.6″ x 9.6″ (Micro ATX)
電源供應器:
HD Audio x 1, USB 2.0 x 2, USB 3.0 x 2
風扇支援:
Extended Chassis (Left or Right): 4 x 120mm , 3 x 140mm, Main Chassis: 4x 120mm , 3 x 140mm

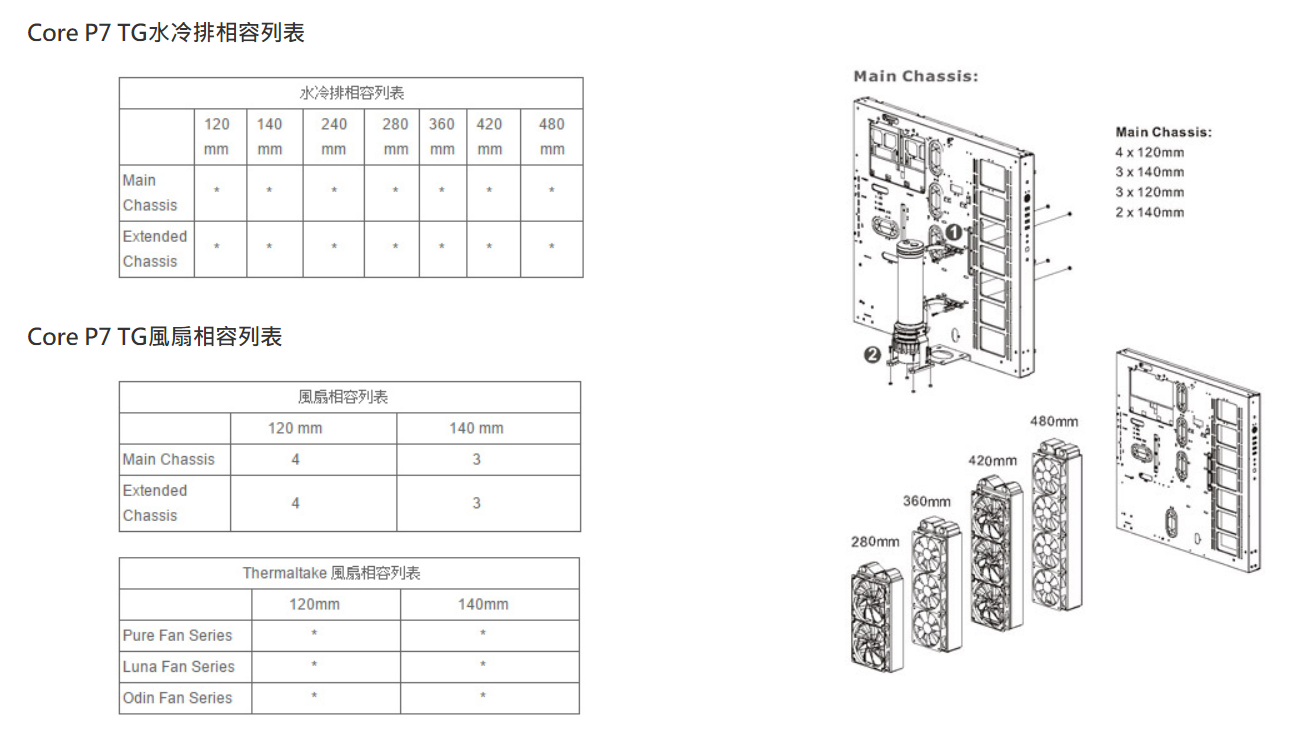

水冷排支援:

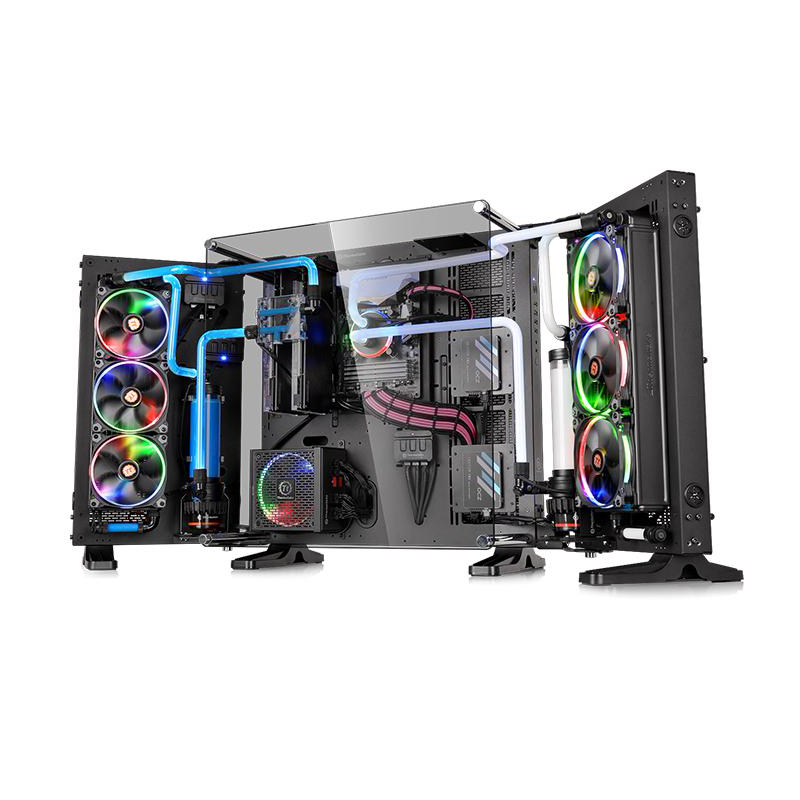

Extended Chassis (Left or Right): 1 x 480mm , 1 x 420mm, Main Chassis: 1 x 480mm , 1 x 420mm
